SolarEdge EV Charger - LED-Indication

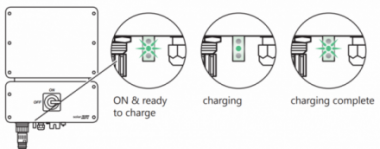

The following table lists the LED indications when the EV charge cable is both connected to the inverter and activated please refer to the EV Charger Cable Installation Guide (supplied with the EV charger).
| LED Color | Position | Description |
| All LEDs | OFF | No power |
| Red LED | ON | System error |
| Blue LED | ON OFF | The EV Charger is communicating with the inverter The EV Charger is not communicating with the inverter |
| Green LED | On Blinking Flickering | Charging The EV Charger is plugged in but not charging The EV Charger is ready to charge but not plugged in |
In the event of an error, please contact your installer for assistance.
